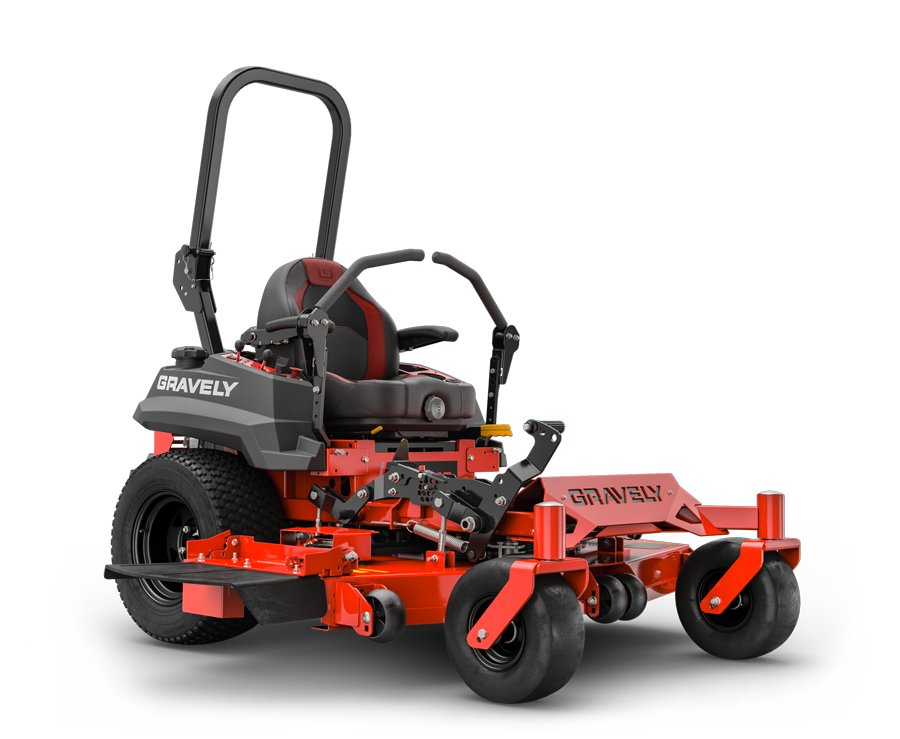

PRO-TURN® 100
SUCCEED, DON'T SETTLE.
Put your best foot forward with the power and performance of the PRO-TURN 100.
Every inch is of value on the PRO-TURN 100. Packed with Gravely brand’s time-tested features, this hard-working mower stands up to your toughest jobs.
PRO-TURN 148 KAWASAKI
model# 991128
power train
Engine: Kawasaki® FX691V
Horsepower: 22
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 10 gal / 37.9 ltr
Drive System: Hydro-Gear® ZT-3400 Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 10 mph / 16.1 kph
Ground Speed Reverse: 5 mph / 8 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 23.0 x 10.5 in - 12.0 in (58.4 x 26.7 cm - 30.5 cm)
Electric
Battery Capacity: 300 CCA
Battery Type: Lead Acid - Maintenance Free
Battery Size: U1
Deck
Deck Size: 48 in / 121.9 cm
Coverage Hour: 4.8 acres / 1.9 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor ® II
Discharge Configuration: Side
Cutting Height Min: 1 in / 2.5 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 48 in / 121.9 cm
dimensions
Weight (assembled): 1062 lb
Length: 78.5 in / 199.4 cm
Width: 48 in / 121.9 cm
Width (Chute Up): 50 in / 127 cm
Width (Chute Down): 62 in / 157.5 cm
PRO-TURN 152 KAWASAKI
model# 991129
power train
Engine: Kawasaki® FX691V
Horsepower: 22
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 10 gal / 37.9 ltr
Drive System: Hydro-Gear® ZT-3400 Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 10 mph / 16.1 kph
Ground Speed Reverse: 5 mph / 8 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 23.0 x 10.5 in - 12.0 in (58.4 x 26.7 cm - 30.5 cm)
Electric
Battery Capacity: 300 CCA
Battery Type: Lead Acid - Maintenance Free
Battery Size: U1
Deck
Deck Size: 52 in / 132.1 cm
Coverage Hour: 5.2 acres / 2.1 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor ® II
Discharge Configuration: Side
Cutting Height Min: 1 in / 2.5 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 52 in / 132.1 cm
dimensions
Weight (assembled): 1079 lb
Length: 78.5 in / 199.4 cm
Width: 52 in / 132.1 cm
Width (Chute Up): 55.5 in / 141 cm
Width (Chute Down): 67.5 in / 171.5 cm

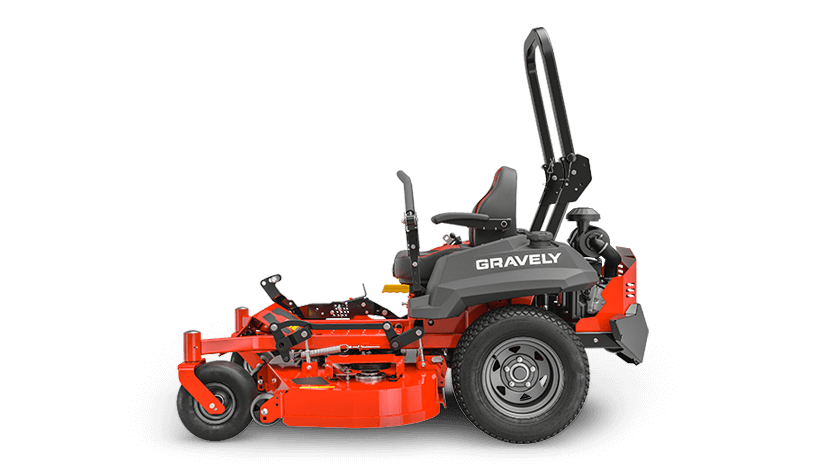

PRO-TURN 160 KAWASAKI
Model# 992503
power train
Engine: Kawasaki® FX730V
Horsepower: 23.5
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 10 gal / 37.9 ltr
Drive System: Hydro-Gear® ZT-3400 Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 10 mph / 16.1 kph
Ground Speed Reverse: 5 mph / 8 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 23.0 x 10.5 in - 12.0 in (58.4 x 26.7 cm - 30.5 cm)
Electric
Battery Capacity: 300 CCA
Battery Type: Lead Acid - Maintenance Free
Battery Size: U1
Deck
Deck Size: 60 in / 152.4 cm
Coverage Hour: 6 acres / 2.4 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor ® II
Discharge Configuration: Side
Cutting Height Min: 1 in / 2.5 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 60 in / 152.4 cm
dimensions
Weight (assembled): 1121 lb
Length: 78.5 in / 199.4 cm
Width: 60 in / 152.4 cm
Width (Chute Up): 63 in / 160 cm
Width (Chute Down): 75 in / 190.5 cm
