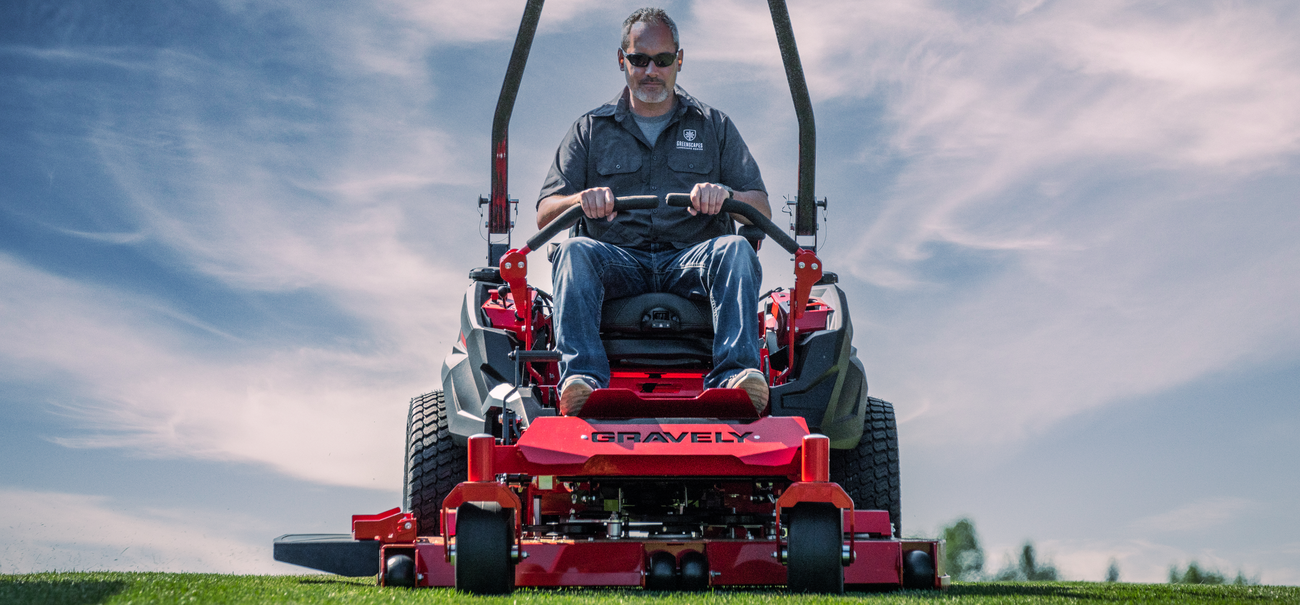

PRO-TURN® 500
A TRUE COMMERCIAL-QUALITY MOWER BUILT FOR PROFESSIONALS.
This is the Pro-Turn® 500. A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the Pro-Turn 500 the better choice.
PRO-TURN 552 KAWASAKI
model# 992510
power train
Engine: Kawasaki® FX850V
Horsepower: 27
Engine Displacement: 52 in / 852 cc
Fuel System: Gas
Fuel Capacity: 12.5 gal / 47.3 ltr
Drive System: Hydrostatic
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 15 mph / 24.1 kph
Ground Speed Reverse: 6 mph / 9.7 kph
Wheels Front: 15.0 x 6.0 in - 6.0 in (38.1 x 15.2 cm - 38.1 cm)
Wheels Rear: 26.0 x 12.0 in - 12.0 in (66.0 x 30.5 cm - 30.5 cm)
Front Wheel Track: 42.3 in
Rear Wheel Track: 55 in / 139.7 cm
Electric
Battery Capacity: 300 CCA
Number of Batteries: 1
Battery Voltage: 12
Battery TypeLead Acid - Maintenance Free
Battery Size U1
Deck
Deck Size: 52 in / 132.1 cm
Coverage Hour: 7.8 acres / 3.2 hectares
Spindle Type: Mechanical
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1 in / 2.5 cm
Cutting Height Max: 5.5 in / 14 cm
Cutting Width: 52 in / 132.1 cm
dimensions
Weight (assembled): 1447 lb
Length: 84 in / 213.4 cm
Width: 52 in / 132.1 cm
Width (Chute Up): 55 in / 139.7 cm
Width (Chute Down): 63 in / 160 cm
PRO-TURN 560 KAWASAKI FX1000 EFI
model# 992530
power train
Engine: Kawasaki® FX1000 EFI
Horsepower: 38.5
Engine Displacement: 61 in
Drive System: Hydrostatic
Driver Position: Sit
Ground Speed Forward: 15 mph / 24.1 kph
Ground Speed Reverse: 6 mph / 9.7 kph
Wheels Front: 15.0 x 6.0 in - 6.0 in (38.1 x 15.2 cm - 38.1 cm)
Wheels Rear: 26.0 x 12.0 in - 12.0 in (66.0 x 30.5 cm - 30.5 cm)
Deck
Deck Size: 60 in / 152.4 cm
Coverage Hour: 9 acres / 3.6 hectares
Spindle Type: Electric
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1 in / 2.5 cm
Cutting Height Max: 5.5 in / 14 cm
Cutting Width: 60 in / 152.4 cm
dimensions
Weight (assembled): 1498 lb
Length: 84 in / 213.4 cm
PRO-TURN 560 KAWASAKI
Model# 992511
power train
Engine: Kawasaki® FX921V
Horsepower: 31
Engine Displacement: 61 in / 999 cc
Fuel System : Gas
Fuel Capacity: 12.5 gal / 47.3 ltr
Drive System: Hydrostatic
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 15 mph / 24.1 kph
Ground Speed Reverse: 6 mph / 9.7 kph
Wheels Front: 15.0 x 6.0 in - 6.0 in (38.1 x 15.2 cm - 38.1 cm)
Wheels Rear: 26.0 x 12.0 in - 12.0 in (66.0 x 30.5 cm - 30.5 cm)
Front Wheel Track: 42.3 in
Rear Wheel Track: 55 in / 139.7 cm
Electric
Battery Capacity: 300 CCA
Number of Batteries: 1
Battery Voltage: 12
Battery Type: Lead Acid - Maintenance Free
Battery Size: U1
Deck
Deck Size: 60 in / 152.4 cm
Coverage Hour: 9 acres / 3.6 hectares
Spindle Type: Mechanical
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1 in / 2.5 cm
Cutting Height Max: 5.5 in / 14 cm
Cutting Width: 60 in / 152.4 cm
dimensions
Weight (assembled): 1487 lb
Length: 84 in / 213.4 cm
Width: 60 in / 152.4 cm
Width (Chute Up): 63 in / 160 cm
Width (Chute Down): 75 in / 190.5 cm
PRO-TURN 572 KAWASAKI FX1000 EFI
Model# 992531
power train
Engine: Kawasaki® FX1000 EFI
Horsepower: 38.5
Engine Displacement: 61 in
Drive System: Hydrostatic
Driver Position: Sit
Ground Speed Forward: 15 mph / 24.1 kph
Ground Speed Reverse: 6 mph / 9.7 kph
Wheels Front: 15.0 x 6.0 in - 6.0 in (38.1 x 15.2 cm - 38.1 cm)
Wheels Rear: 26.0 x 12.0 in - 12.0 in (66.0 x 30.5 cm - 30.5 cm)
Deck
Deck Size: 72 in / 182.9 cm
Coverage Hour: 10.8 acres / 4.4 hectares
Spindle Type: Electric
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1 in / 2.5 cm
Cutting Height Max: 5.5 in / 14 cm
Cutting Width: 72 in / 182.9 cm
dimensions
Weight (assembled): 1601 lb
Length: 86.2 in / 218.9 cm

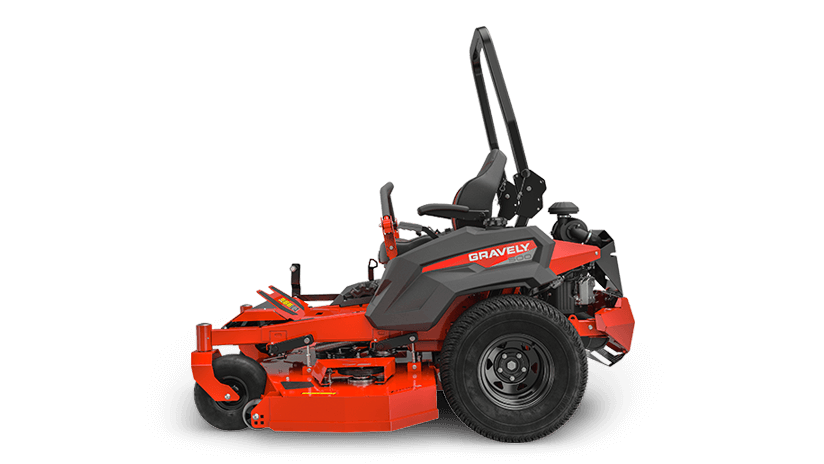

PRO-TURN 572 KAWASAKI
Model# 992512
power train
Engine: Kawasaki® FX921V
Horsepower: 31
Engine Displacement: 61 in / 999 cc
Fuel System: Gas
Fuel Capacity: 12.5 gal / 47.3 ltr
Drive System: Hydrostatic
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 5 mph / 24.1 kph
Ground Speed Reverse: 6 mph / 9.7 kph
Wheels Front: 15.0 x 6.0 in - 6.0 in (38.1 x 15.2 cm - 38.1 cm)
Wheels Rear: 26.0 x 12.0 in - 12.0 in (66.0 x 30.5 cm - 30.5 cm)
Front Wheel Track: 51.9 in
Rear Wheel Track: 55 in / 139.7 cm
Electric
Battery Capacity: 300 CCA
Number of Batteries: 1
Battery Voltage: 12
Battery Type: Lead Acid - Maintenance Free
Battery Size: U1
Deck
Deck Size: 72 in / 182.9 cm
Coverage Hour: 10.8 acres / 3.2 hectares
Spindle Type: Mechanical
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1 in / 2.5 cm
Cutting Height Max: 5.5 in / 14 cm
Cutting Width: 72 in / 182.9 cm
dimensions
Weight (assembled): 1580 lb
Length: 86.2 in / 218.9 cm
Width: 72 in / 182.9 cm
Width (Chute Up): 75 in / 190.5 cm
Width (Chute Down): 87 in / 221 cm
