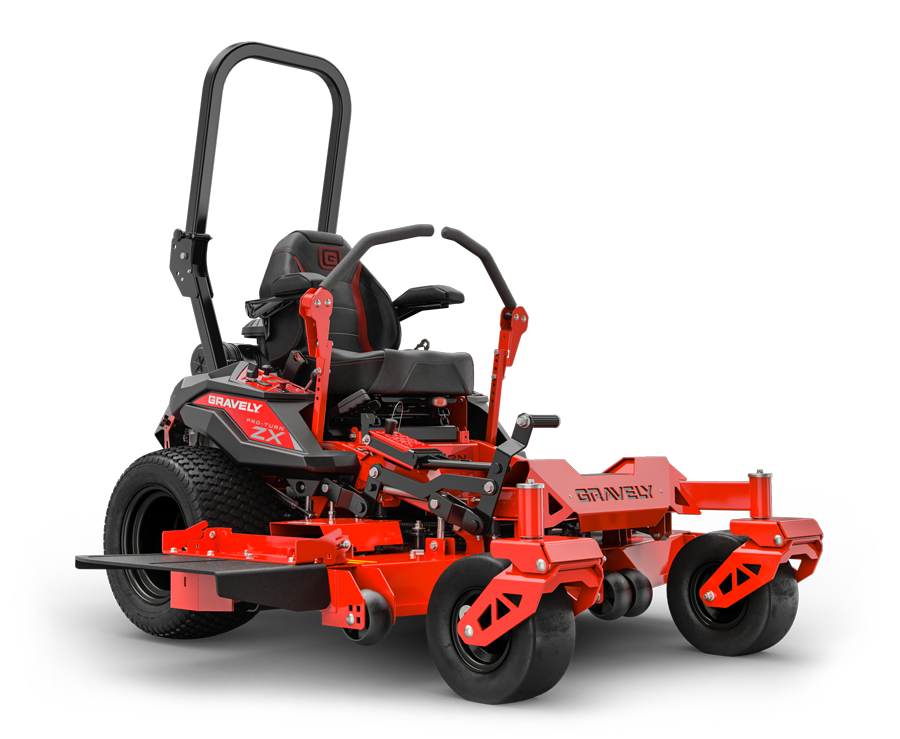

PRO-TURN® ZX
GET MUCH MORE THAN YOU PAY FOR.
Don't let its price-point fool you. The Pro-Turn® ZX still delivers great Gravely performance, making it a great value. Its solid construction can handle the toughest commercial jobs and leave a beautifully manicured lawn behind it. This is definitely a "big return on a small investment" situation.
PRO-TURN ZX 48 Kawasaki
model# 991287
power train
Engine: Kawasaki® FX691V
Horsepower: 22
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 5.1 gal / 19.3 ltr
Drive System: Hydro-Gear® ZT-3200™ Transaxles
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 8.5 mph / 13.7 kph
Ground Speed Reverse: 4 mph / 6.4 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 22.0 x 10.0 in - 12.0 in (55.9 x 25.4 cm - 30.5 cm)
Electric
Battery Capacity: 300 CCA
Battery Type: Lead Acid - Maintenance Free
Battery Size: U1
Deck
Deck Size: 60 in / 152.4 cm
Coverage Hour: 5.1 acres / 2.1 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 60 in / 152.4 cm
dimensions
Weight (assembled): 931 lb
Length: 79 in / 200.7 cm
Width (Chute Up): 56.2 in / 142.7 cm
Width (Chute Down): 67.3 in / 170.9 cm
PRO-TURN ZX 52 Kawasaki
model# 991289
power train
Engine: Kawasaki® FX730V
Horsepower: 22
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 5.1 gal / 19.3 ltr
Drive System: Hydro-Gear® ZT-3200™ Transaxles
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 8.5 mph / 13.7 kph
Ground Speed Reverse: 4 mph / 6.4 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 22.0 x 10.5 in - 12.0 in (55.9 x 26.7 cm - 30.5 cm)
Electric
Battery Capacity: 300 CCA
Battery TypeLead Acid - Maintenance Free
Battery Size U1
Deck
Deck Size: 60 in / 152.4 cm
Coverage Hour: 5.1 acres / 2.1 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 60 in / 152.4 cm
dimensions
Weight (assembled): 952 lb
Length: 79 in / 200.7 cm
Width (Chute Up): 63.7 in / 161.8 cm
Width (Chute Down): 74.8 in / 190 cm

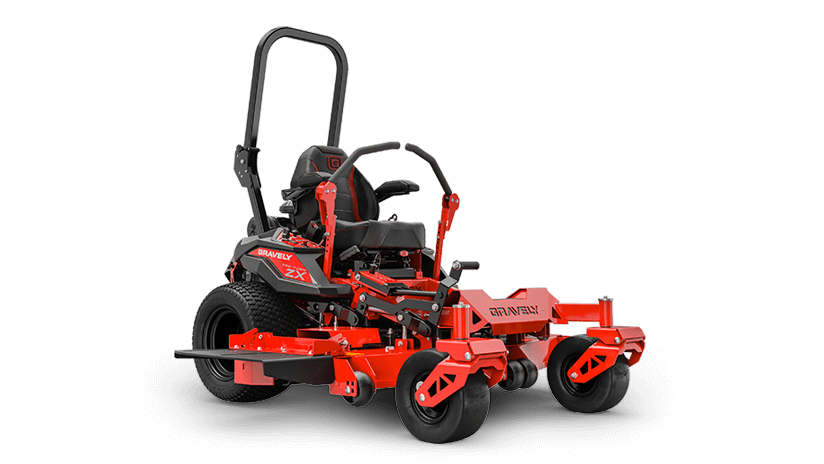

PRO-TURN ZX 60 Kawasaki
Model# 991291
power train
Engine: Kawasaki® FX730V
Horsepower: 23.5
Engine Displacement: 726 cc
Fuel System: Gas
Fuel Capacity: 5.1 gal / 19.3 ltr
Drive System: Hydro-Gear® ZT-3200™ Transaxles
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 8.5 mph / 13.7 kph
Ground Speed Reverse: 4 mph / 6.4 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 22.0 x 12.0 in - 12.0 in (55.9 x 30.5 cm - 30.5 cm)
Electric
Battery Capacity: 300 CCA
Battery Type: Lead Acid - Maintenance Free
Battery Size: U1
Deck
Deck Size 60 in / 152.4 cm
Coverage Hour 5.1 acres / 2.1 hectares
Deck Material 7 ga
Deck Construction Fabricated X-Factor® 3
Discharge Configuration Side
Cutting Height Min 1.5 in / 3.8 cm
Cutting Height Max 5 in / 12.7 cm
Cutting Width 60 in / 152.4 cm
dimensions
Weight (assembled): 925 lb
Length: 79 in / 200.7 cm
Width (Chute Up): 50.8 in / 129 cm
Width (Chute Down): 61.9 in / 157.2 cm
