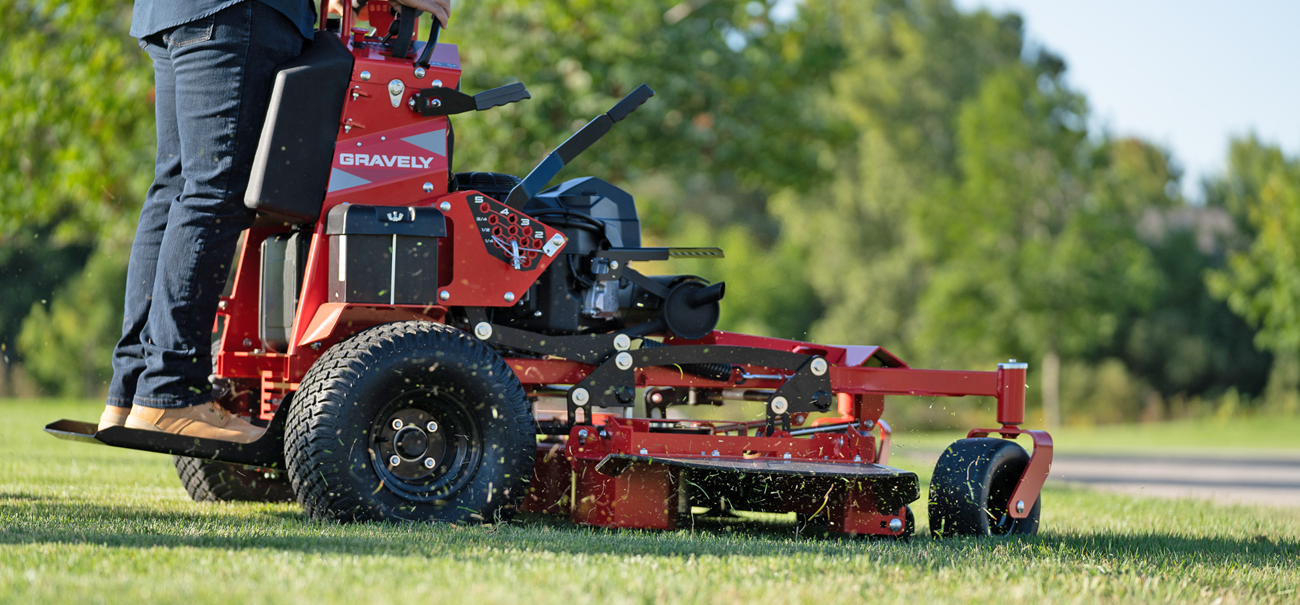

Z-Stance
STAND TALL ON THE TURF.
You’ll ride with pride as you deliver that perfect Gravely cut on the Z-Stance. This powerful commercial stand-on mower is easy to maneuver and a breeze to maintain. It’s three deck sizes make quick work of a corporate campus or a gated backyard. You take a stand for comfort, ingenuity, and durability when you’re on a Z-Stance.

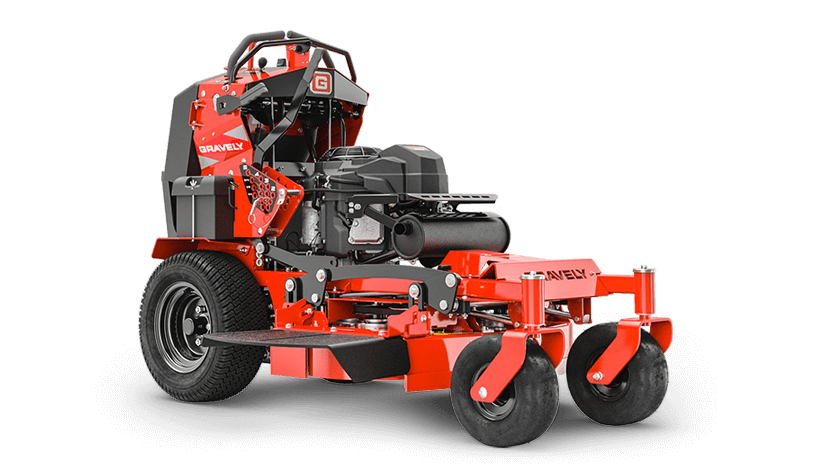

Z-STANCE 32 KAWASAKI
Electric
Battery Capacity: 300 CCA
Battery Type: Lead Acid - Maintenance Free
Battery Size: U1
model# 994160
power train
Engine: Kawasaki® FS600V
Horsepower: 18.5
Engine Displacement: 36.8 in / 603 cc
Fuel System: Gas
Fuel Capacity: 4.5 gal / 17 ltr
Drive System: Hydro-Gear® ZT-3100® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Stand
Ground Speed Forward: 7 mph / 11.3 kph
Ground Speed Reverse: 3 mph / 4.8 kph
Wheels Front: 11.0 x 5.0 in - 6.0 in (27.9 x 12.7 cm - 27.9 cm)
Wheels Rear: 20.0 x 6.5 in - 8.0 in (50.8 x 16.5 cm - 20.3 cm)
Deck
Deck Size: 32 in / 81.3 cm
Coverage Hour: 2.2 acres / 0.9 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor ® II
Discharge Configuration: Side
Cutting Height Min: 2 in / 5.1 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 32 in / 81.3 cm
dimensions
Weight (assembled): 669 lb
Length: 65.5 in / 166.4 cm
Width: 32 in / 81.3 cm
Width (Chute Up): 32.8 in / 83.3 cm
Width (Chute Down): 44.8 in / 113.8 cm
Z-STANCE 48 KAWASAKI
Electric
Battery Capacity: 300 CCA
Battery Type: Lead Acid - Maintenance Free
Battery Size: U1
model# 994159
power train
Engine: Kawasaki® Kawasaki® FS651V
Horsepower: 22
Engine Displacement: 44.3 in / 725.9 cc
Fuel System: Gas
Fuel Capacity: 4.5 gal / 17 ltr
Drive System: Hydro-Gear® ZT-3100® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Stand
Ground Speed Forward: 7 mph / 11.3 kph
Ground Speed Reverse: 3 mph / 4.8 kph
Wheels Front: 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm)
Wheels Rear: 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm)
Deck
Deck Size: 48 in / 121.9 cm
Coverage Hour: 3.4 acres / 1.4 hectares
Deck Material: 10 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 48 in / 121.9 cm
dimensions
Weight (assembled): 744 lb
Length: 65.5 in / 166.4 cm
Width: 48 in / 121.9 cm
Width (Chute Up): 49.5 in / 125.7 cm
Width (Chute Down): 61 in / 154.9 cm
Z-STANCE 52 KAWASAKI
Model# 994158
power train
Engine: Kawasaki® FS651V
Horsepower: 22
Engine Displacement: 44.3 in / 725.9 cc
Fuel System: Gas
Fuel Capacity: 4.5 gal / 17 ltr
Drive System: Hydro-Gear® ZT-3100® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Stand
Ground Speed Forward: 7 mph / 11.3 kph
Ground Speed Reverse: 3 mph / 4.8 kph
Wheels Front: 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm)
Wheels Rear: 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm)
Deck
Deck Size: 52 in / 132.1 cm
Coverage Hour: 3.6 acres / 1.5 hectares
Deck Material: 10 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 52 in / 132.1 cm
dimensions
Weight (assembled): 763 lb
Length: 65.5 in / 166.4 cm
Width: 52 in / 132.1 cm
Width (Chute Up): 55 in / 139.7 cm
Width (Chute Down): 66.8 in / 169.5 cm
electric
Battery Capacity: 300 CCA
Battery Type: Lead Acid - Maintenance Free
Battery Size: U1
