ZT
GIVE YOUR LAWN THE BIG ACERAGE TREATMENT.
The Gravely ZT brings commercial features and construction to a residential compact design. This is a comfortable, durable zero-turn mower that gives you the maneuverability you need to finish the job quickly – without sacrificing a beautifully cut lawn.

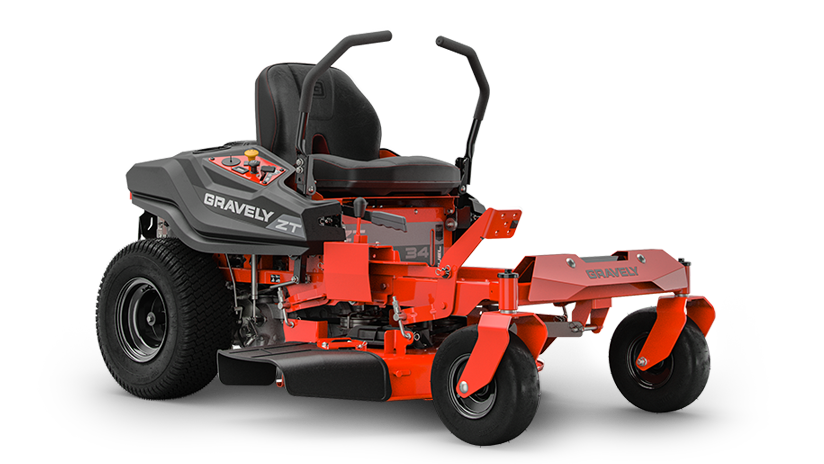

ZT 34 KAWASAKI
model# 915288
power train
Engine: Kawasaki® FR600V
Horsepower: 18
Engine Displacement: 36.8 in / 603 cc
Fuel System: Gas
Fuel Capacity: 2 gal / 7.6 ltr
Drive System: Hydro-Gear® Serviceable EZT® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 6 mph / 9.7 kph
Ground Speed Reverse: 3 mph / 4.8 kph
Wheels Front: 11.0 x 4.0 in - 5.0 in (27.9 x 10.2 cm - 27.9 cm)
Wheels Rear: 18.0 x 6.5 in - 8.0 in (45.7 x 16.5 cm - 20.3 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1
Deck
Deck Size: 34 in / 86.4 cm
Coverage Hour: 2 acres / 0.8 hectares
Deck Material: 12 ga
Deck Construction: Stamped
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 4.5 in / 11.4 cm
Cutting Width: 34 in / 86.4 cm
dimensions
Weight (assembled): 445 lb
Length: 68 in / 172.7 cm
Width (Chute Up): 41.8 in / 106.2 cm
Width (Chute Down): 44.8 in / 113.8 cm
ZT 42 KAWASAKI
model# 915289
power train
Engine: Kawasaki® FR600V
Horsepower: 18
Engine Displacement: 36.8 in / 603 cc
Fuel System: Gas
Fuel Capacity: 2 gal / 7.6 ltr
Drive System: Hydro-Gear® Serviceable EZT® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 6 mph / 9.7 kph
Ground Speed Reverse: 3 mph / 4.8 kph
Wheels Front: 11.0 x 4.0 in - 5.0 in (27.9 x 10.2 cm - 27.9 cm)
Wheels Rear: 18.0 x 8.5 in - 8.0 in (45.7 x 21.6 cm - 20.3 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1
Deck
Deck Size: 42 in / 106.7 cm
Coverage Hour: 2.5 acres / 1 hectares
Deck Material: 11 ga
Deck Construction: Fabricated
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 4.5 in / 11.4 cm
Cutting Width: 42 in / 106.7 cm
dimensions
Weight (assembled): 498 lb
Length: 68 in / 172.7 cm
Width (Chute Up): 46.3 in / 117.6 cm
Width (Chute Down): 54.8 in / 139.2 cm

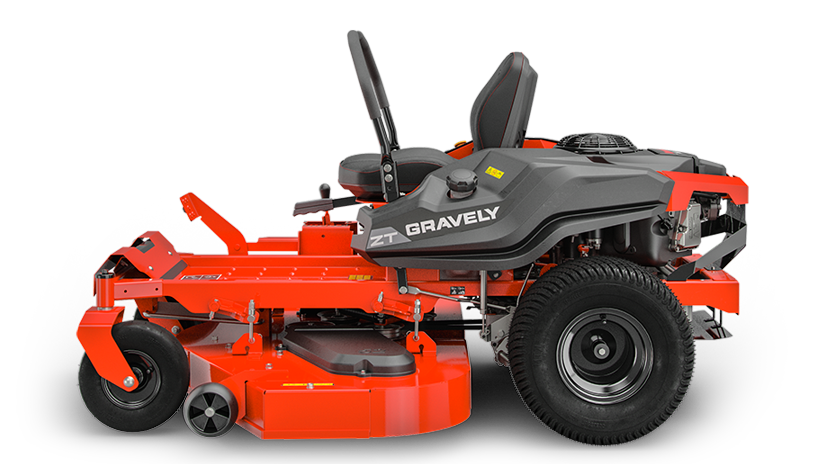

ZT 52 KAWASAKI
Model# 915290
power train
Engine: Kawasaki® FR651V
Horsepower: 21.5
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 2 gal / 7.6 ltr
Drive System: Hydro-Gear® Serviceable EZT® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 6 mph / 9.7 kph
Ground Speed Reverse: 3 mph / 4.8 kph
Wheels Front: 11.0 x 4.0 in - 5.0 in (27.9 x 10.2 cm - 27.9 cm)
Wheels Rear: 18.0 x 9.5 in - 8.0 in (45.7 x 24.1 cm - 20.3 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1 Compatible
Deck
Deck Size: 52 in / 132.1 cm
Coverage Hour: 3.1 acres / 1.3 hectares
Deck Material: 11 ga
Deck Construction: Fabricated
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 4.5 in / 11.4 cm
Cutting Width: 52 in / 132.1 cm
dimensions
Weight (assembled): 551 lb
Length: 68 in / 172.7 cm
Width (Chute Up): 55.4 in / 140.7 cm
Width (Chute Down): 64.2 in / 163.1 cm
