ZT HD
THE MOWER KNOWN FOR MAKING NEIGHBORS JEALOUS.
For homeowners who don’t just want to mow their lawn but prefer to manicure it. After all, this is a residential mower often mistaken for a commercial unit. It has the power, durability, and high performance that lawn aficionados demand – causing them to ask whether or not their lawn is worthy of such a machine.
ZT HD 44 KAWASAKI
model# 991267
power train
Engine: Kawasaki® FR651V
Horsepower: 21.5
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 5.1 gal / 19.3 ltr
Drive System: Hydro-Gear® ZT-3100® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 8 mph / 12.9 kph
Ground Speed Reverse: 4 mph / 6.4 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 22.0 x 10.0 in - 10.0 in (55.9 x 25.4 cm - 25.4 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1
Deck
Deck Size: 44 in / 111.8 cm
Coverage Hour: 3.5 acres / 1.4 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 44 in / 111.8 cm
dimensions
Weight (assembled): 805 lb
Length: 79 in / 200.7 cm
Width (Chute Up): 47.6 in / 120.9 cm
Width (Chute Down): 58.8 in / 149.4 cm
ZT HD 48 KAWASAKI
model# 991269
power train
Engine: Kawasaki® FR691V
Horsepower: 23
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 5.1 gal / 19.3 ltr
Drive System: Hydro-Gear® ZT-3100® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 8 mph / 12.9 kph
Ground Speed Reverse: 4 mph / 6.4 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 22.0 x 10.0 in - 10.0 in (55.9 x 25.4 cm - 25.4 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1
Deck
Deck Size: 48 in / 121.9 cm
Coverage Hour: 3.8 acres / 1.5 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 48 in / 121.9 cm
dimensions
Weight (assembled): 802 lb
Length: 79 in / 200.7 cm
Width (Chute Up): 50.8 in / 129 cm
Width (Chute Down): 61.9 in / 157.2 cm

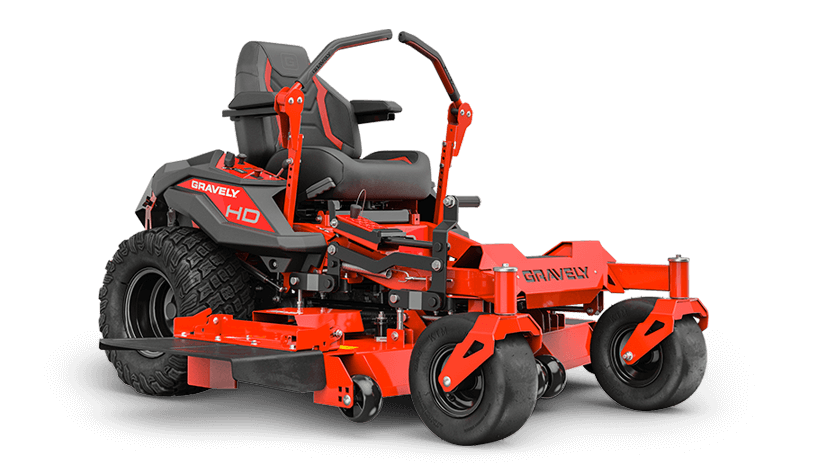

ZT HD 52 Kawasaki
Model# 991277
power train
Engine: Kawasaki® FR691V
Horsepower: 23
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 5.1 gal / 19.3 ltr
Drive System: Hydro-Gear® ZT-3100® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 8 mph / 12.9 kph
Ground Speed Reverse: 4 mph / 6.4 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 22.0 x 11.0 in - 10.0 in (55.9 x 27.9 cm - 25.4 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1 Compatible
Deck
Deck Size: 52 in / 132.1 cm
Coverage Hour: 4.2 acres / 1.7 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 60 in / 152.4 cm
dimensions
Weight (assembled): 817 lb
Length: 79 in / 200.7 cm
Width (Chute Up): 56.2 in / 142.7 cm
Width (Chute Down): 67.3 in / 170.9 cm
ZT HD 60 Kawasaki
Model# 991277
power train
Engine: Kawasaki® FR730V
Horsepower: 24
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 5.1 gal / 19.3 ltr
Drive System: Hydro-Gear® ZT-3100® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 8 mph / 12.9 kph
Ground Speed Reverse: 4 mph / 6.4 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 22.0 x 12.0 in - 10.0 in (55.9 x 30.5 cm - 25.4 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1 Compatible
Deck
Deck Size: 60 in / 152.4 cm
Coverage Hour: 4.8 acres / 1.9 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 60 in / 152.4 cm
dimensions
Weight (assembled): 843 lb
Length: 79 in / 200.7 cm
Width (Chute Up): 63.7 in / 161.8 cm
Width (Chute Down): 74.8 in / 190 cm
ZT HD STEALTH® 60 KAWASAKI
Model# 991983
power train
Engine: Kawasaki® FR730V
Horsepower: 24
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 5.1 gal / 19.3 ltr
Drive System: Hydro-Gear® ZT-3100® Transaxles
Transmission Type: Hydrostatic
Brake Type: Lever Activated Parking
Driver Position: Sit
Ground Speed Forward: 8 mph / 12.9 kph
Ground Speed Reverse: 4 mph / 6.4 kph
Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear: 22.0 x 11.0 in - 10.0 in (55.9 x 27.9 cm - 25.4 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1 Compatible
Deck
Deck Size: 60 in / 152.4 cm
Coverage Hour: 4.8 acres / 1.9 hectares
Deck Material: 7 ga
Deck Construction: Fabricated X-Factor® 3
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 5 in / 12.7 cm
Cutting Width: 60 in / 152.4 cm
dimensions
Weight (assembled): 845 lb
Length: 79 in / 200.7 cm
Width (Chute Up):63.7 in / 161.8 cm
Width (Chute Down): 74.8 in / 190 cm
