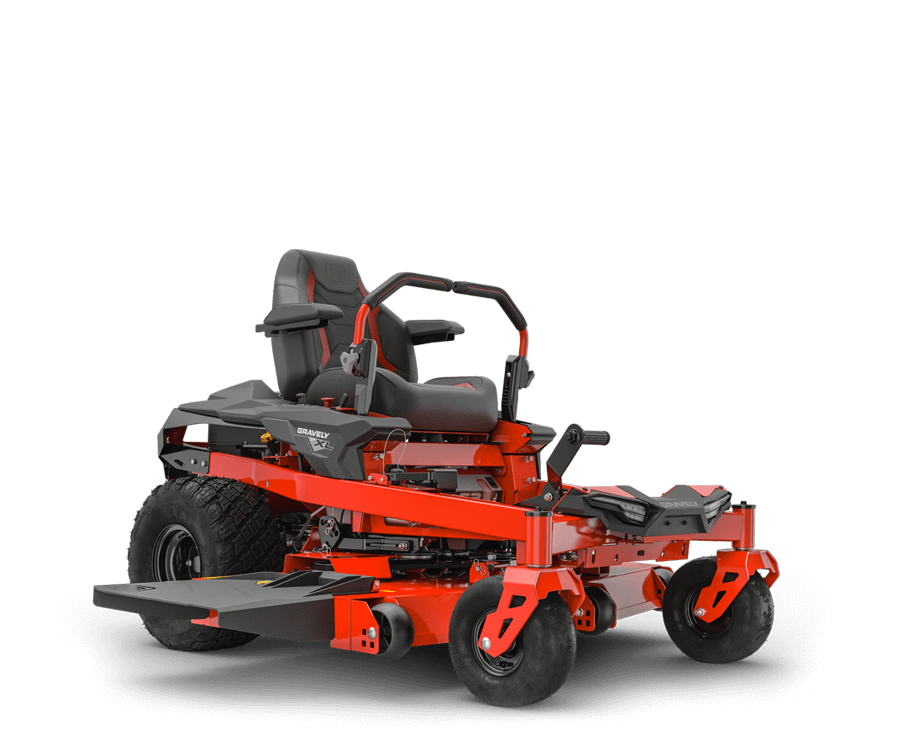

ZT xl
AN UPGRADE TO ANY PROPERTY.
The ZT XL treats residential properties like a pro thanks to its professional-grade power and heavy-duty features. It’s built to handle big jobs while it delivers the comfort needed to mow acre after acre. This is a residential machine with the heart and soul of a commercial mower.
ZT XL 42 KAWASAKI
model# 918012
power train
Engine: Kawasaki® FR651V
Horsepower: 21.5
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 3.5 gal / 13.2 ltr
Drive System: Hydro-Gear® ZT-2800® Transaxles
Transmission Type: Hydrostatic
Brake Type: Integrated Parking Brake
Driver Position: Sit
Ground Speed Forward: 7 mph / 11.3 kph
Ground Speed Reverse: 3 mph / 4.8 kph
Wheels Front: 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm)
Wheels Rear: 20.0 x 8.0 in - 8.0 in (50.8 x 20.3 cm - 20.3 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1
Deck
Deck Size: 42 in / 106.7 cm
Coverage Hour: 2.9 acres / 1.2 hectares
Deck Material: 11 ga
Deck Construction: Fabricated X-Factor®
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 4.5 in / 11.4 cm
Cutting Width: 42 in / 106.7 cm
dimensions
Weight (assembled): 675 lb
Length: 74.5 in / 189.2 cm
Width (Chute Up): 45.1 in / 114.6 cm
Width (Chute Down): 56.2 in / 142.7 cm
ZT XL 48 KAWASAKI
model# 918013
power train
Engine: Kawasaki® FR691V
Horsepower: 23
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 3.5 gal / 13.2 ltr
Drive System: Hydro-Gear® ZT-2800® Transaxles
Transmission Type: Hydrostatic
Brake Type: Integrated Parking Brake
Driver Position: Sit
Ground Speed Forward: 7 mph / 11.3 kph
Ground Speed Reverse: 3 mph / 4.8 kph
Wheels Front: 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm)
Wheels Rear: 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1
Deck
Deck Size: 48 in / 121.9 cm
Coverage Hour: 3.4 acres / 1.4 hectares
Deck Material: 11 ga
Deck Construction: Fabricated X-Factor®
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 4.5 in / 11.4 cm
Cutting Width: 48 in / 121.9 cm
dimensions
Weight (assembled): 689 lb
Length: 74.5 in / 189.2 cm
Width (Chute Up): 51.1 in / 129.8 cm
Width (Chute Down): 62.3 in / 158.2 cm
ZT XL 52 KAWASAKI
Model# 918015
power train
Engine: Kawasaki® FR691V
Horsepower: 23
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 3.5 gal / 13.2 ltr
Drive System: Hydro-Gear® ZT-2800® Transaxles
Transmission Type: Hydrostatic
Brake Type: Integrated Parking Brake
Driver Position: Sit
Ground Speed Forward: 7 mph / 11.3 kph
Ground Speed Reverse: 3 mph / 4.8 kph
Wheels Front: 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm)
Wheels Rear: 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1 Compatible
Deck
Deck Size: 52 in / 132.1 cm
Coverage Hour: 3.6 acres / 1.5 hectares
Deck Material: 11 ga
Deck Construction: Fabricated X-Factor®
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 4.5 in / 11.4 cm
Cutting Width: 52 in / 132.1 cm
dimensions
Weight (assembled): 705 lb
Length: 74.5 in / 189.2 cm
Width (Chute Up): 55.6 in / 141.2 cm
Width (Chute Down): 66.7 in / 169.4 cm
ZT XL 60 KAWASAKI
Model# 918016
power train
Engine: Kawasaki® Kawasaki® FR730V
Horsepower: 24
Engine Displacement: 44.3 in / 726 cc
Fuel System: Gas
Fuel Capacity: 3.5 gal / 13.2 ltr
Drive System: Hydro-Gear® ZT-2800® Transaxles
Transmission Type: Hydrostatic
Brake Type: Integrated Parking Brake
Driver Position: Sit
Ground Speed Forward: 7 mph / 11.3 kph
Ground Speed Reverse: 3 mph / 4.8 kph
Wheels Front: 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm)
Wheels Rear: 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm)
Electric
Battery Capacity: 190 CCA
Battery Type: AGM
Battery Size: U1 Compatible
Deck
Deck Size: 60 in / 152.4 cm
Coverage Hour: 4.2 acres / 1.7 hectares
Deck Material: 11 ga
Deck Construction: Fabricated X-Factor®
Discharge Configuration: Side
Cutting Height Min: 1.5 in / 3.8 cm
Cutting Height Max: 4.5 in / 11.4 cm
Cutting Width: 60 in / 152.4 cm
dimensions
Weight (assembled): 725 lb
Length: 74.5 in / 189.2 cm
Width (Chute Up): 63.1 in / 160.3 cm
Width (Chute Down): 74.2 in / 188.5 cm
